With all the variations out there available to run on a VW baja, sandrail, or buggy,  we thought it would be helpful to some if we broke down and measured several different CV joints commonly found used for off road applications.

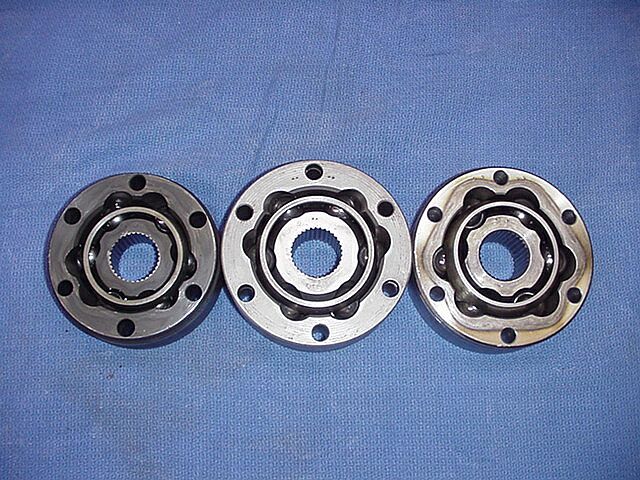

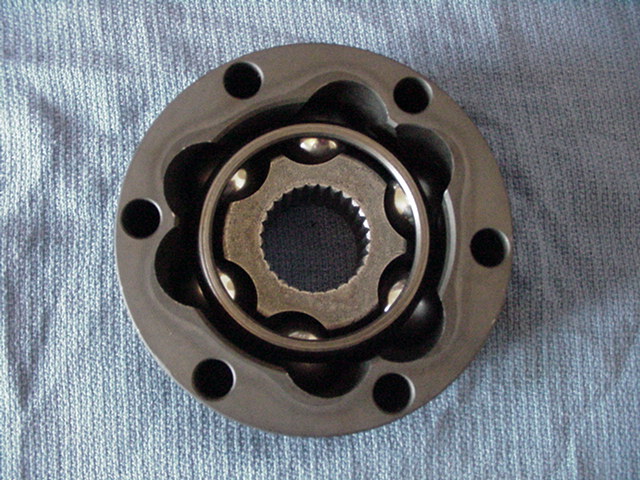

The CV line up pictured in order, consists of a Type 1 (Bug), a Type 4 (Porsche 924/944/VW Thing-181), Type 2 (Bus), and (separately pictured), the Porsche 930.  The measurements are as accurate as I could get them, while holding the calipers and shooting the pics at the same time.  Data used for comparison only.  -CC

Note:
The Type 1, 2, and 4 - CV spline count for the axle hole is 33.
The Porsche 930 - CV spline count for the axle hole is 28.

Another Note:
Recently I found a type 2 CV with larger bearings.  This translated into different cages and outer and inner mounts.  The bearing slots are slightly larger to match the ball size.  If you have a box of disassembled type 2 CV's, you might want to keep that in mind.  -MJ

Maximum Angularity for each CV is listed below

Type 1 is 12 degrees
Type 2 is 17 degrees
Type 4 is 22 degrees
930     is 25 degrees

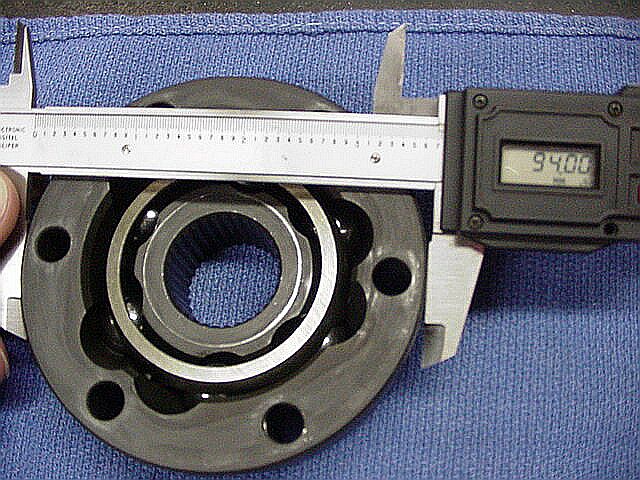

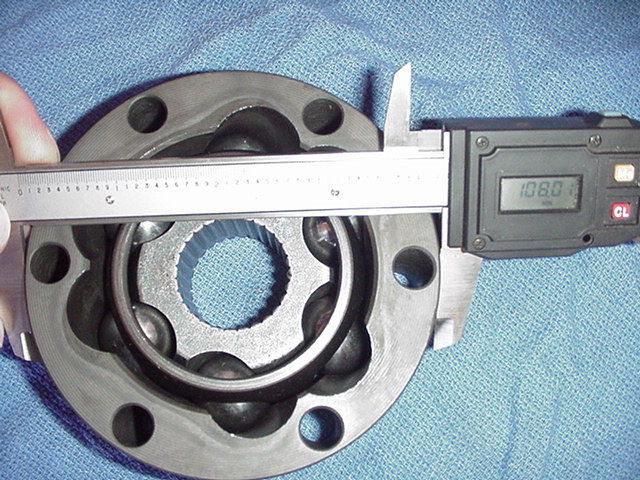

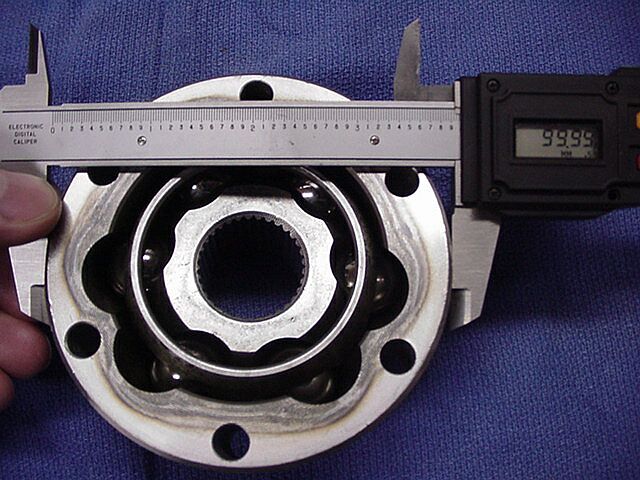

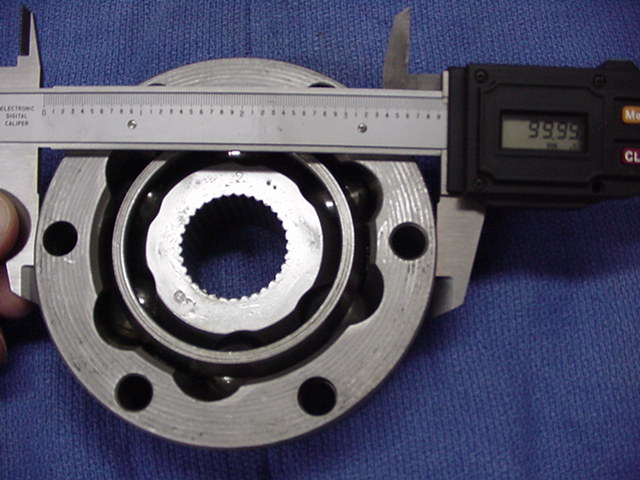

cv_t1_01.jpg (91658 bytes)            cv_t4_01.jpg (79637 bytes)             cv_t2_01.jpg (72767 bytes)            cv_930_01.JPG (119537 bytes)
Type 1 = 94mm       Type 4 = 100mm       Type 2 = 100mm         930 = 108mm

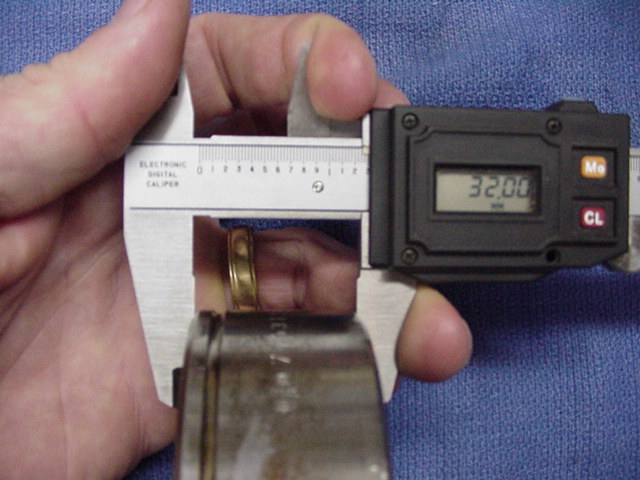

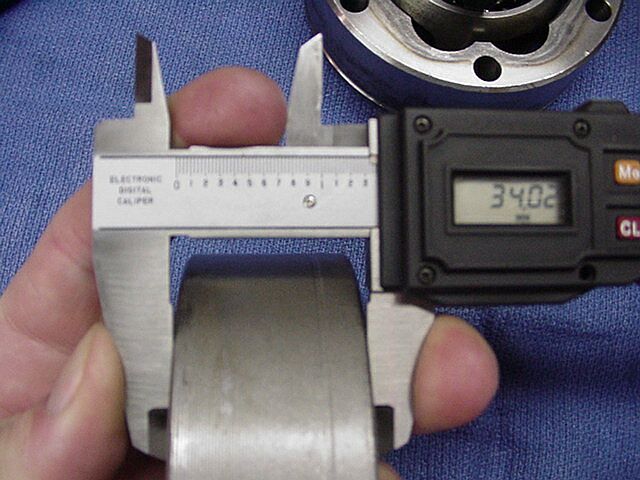

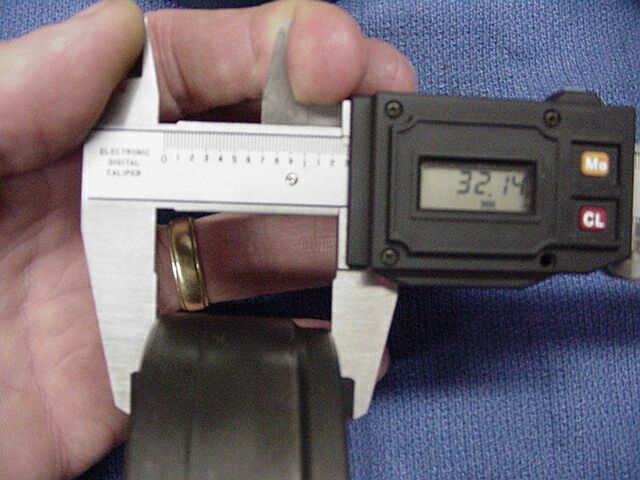

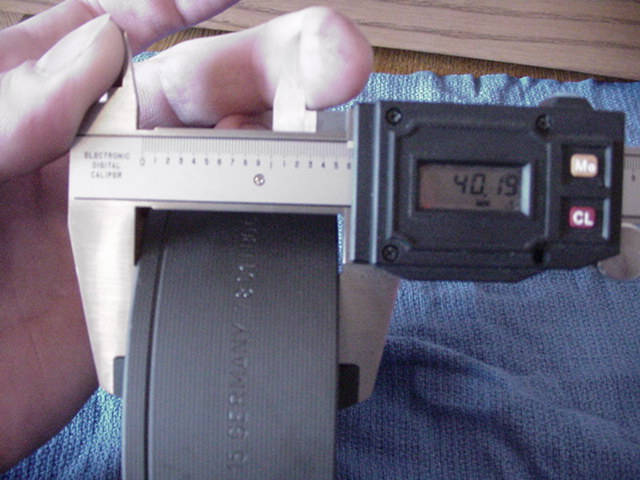

cv_t1_06.jpg (55080 bytes)            cv_t4_06.jpg (59411 bytes)            cv_t2_06.jpg (73318 bytes)            cv_930_06.JPG (75979 bytes)
Type 1 = 32.14mm   Type 4 =34.02mm      Type 2 = 32mm       930 = 40.19mm

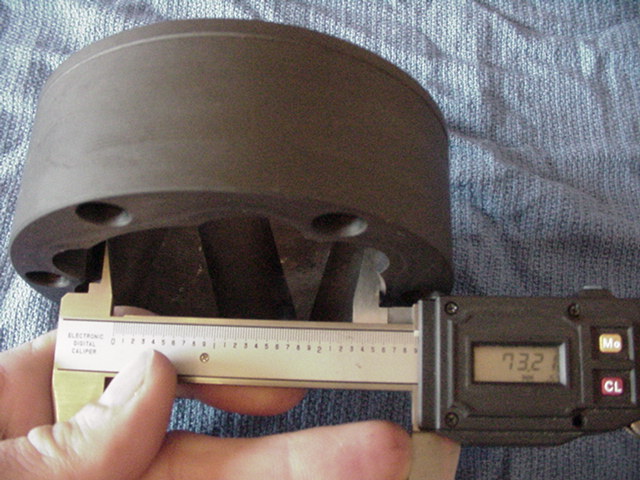

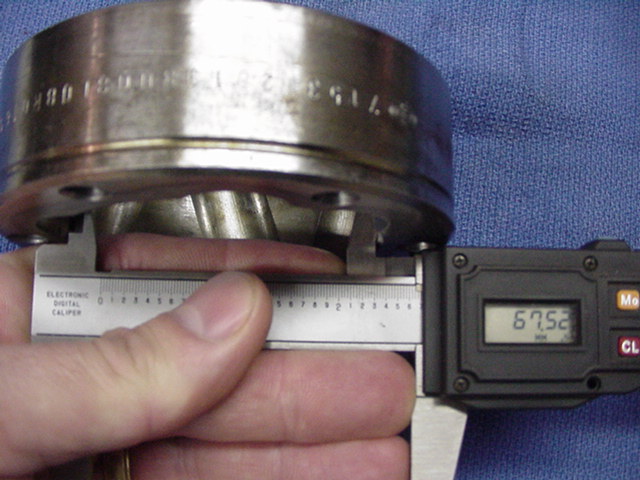

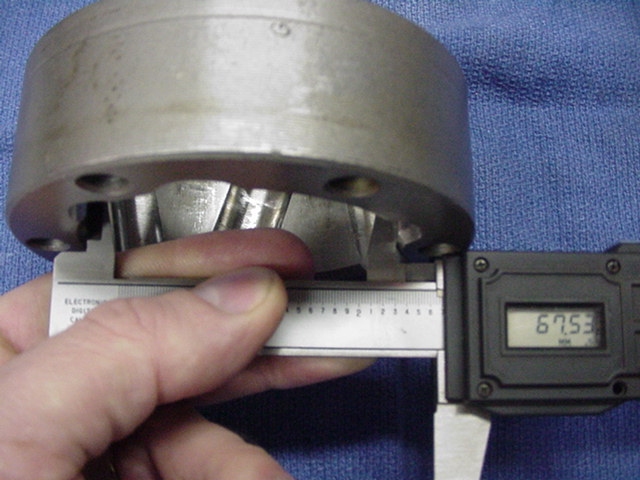

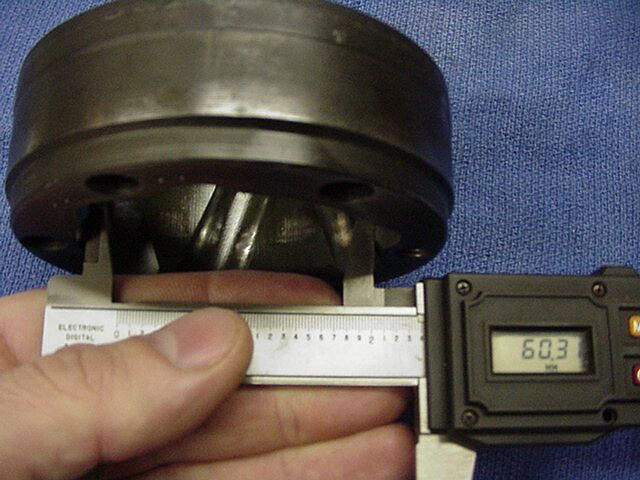

cv_t1_05.jpg (57197 bytes)            cv_t4_05.jpg (71385 bytes)            cv_t2_05.jpg (74310 bytes)            cv_930_05.JPG (87638 bytes)
Type 1 = 60.31mm   Type 4 = 67.53mm    Type 2 = 67.52mm    930 = 73.21

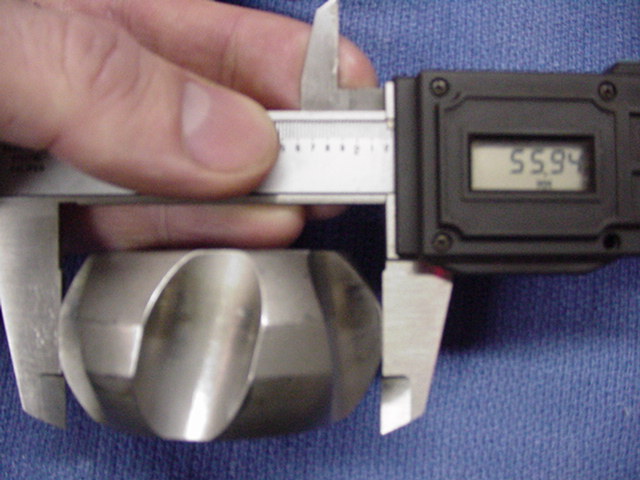

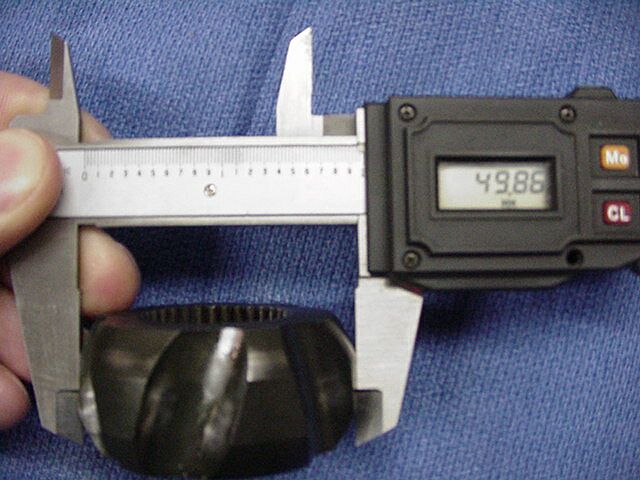

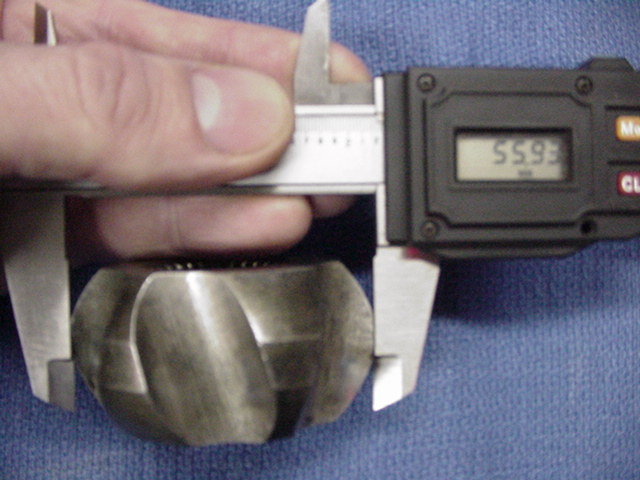

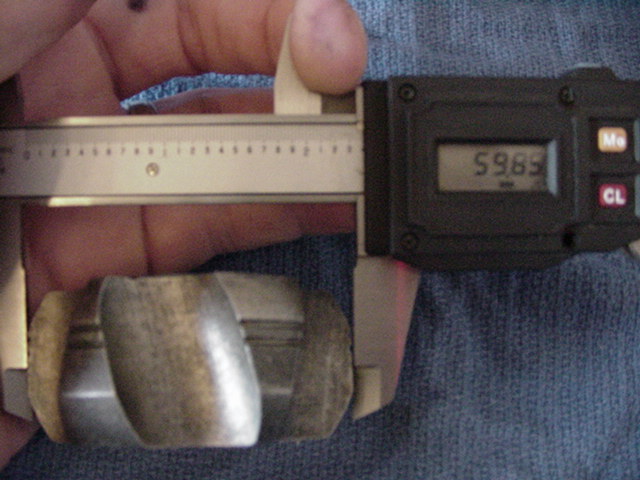

cv_t1_04.jpg (58099 bytes)            cv_t4_04.jpg (65631 bytes)            cv_t2_04.jpg (66160 bytes)            cv_930_04.JPG (72745 bytes)
Type 1 = 49.86mm   Type 4 = 55.93mm   Type 2 = 55.93mm    930 = 59.89mm

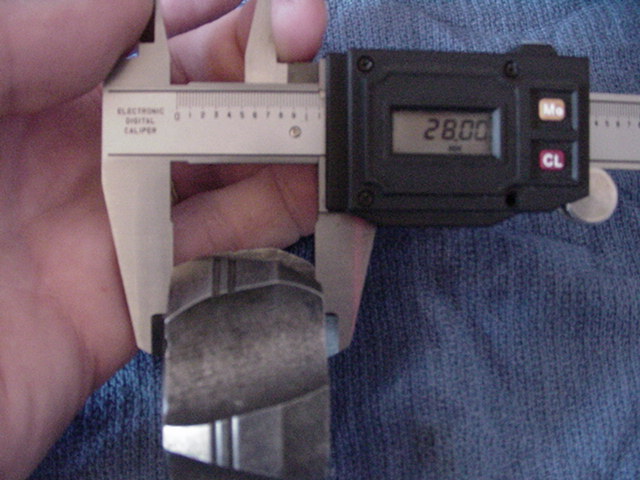

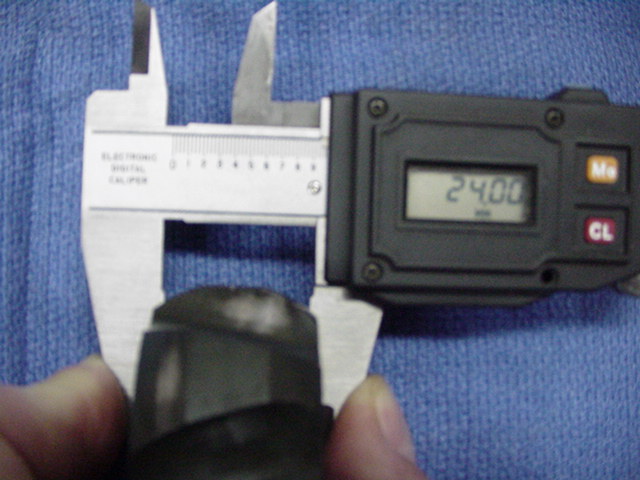

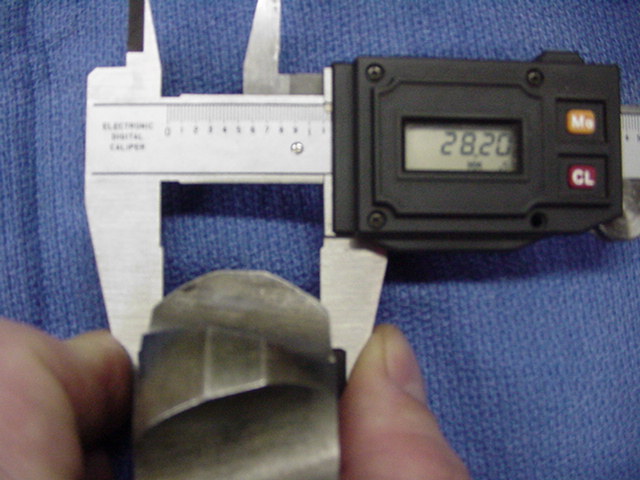

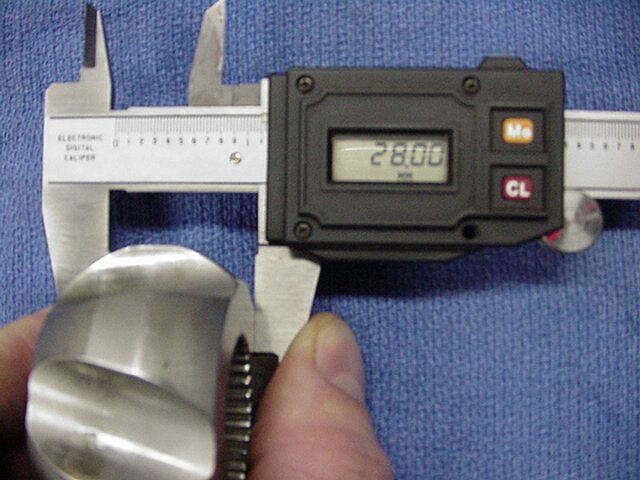

cv_t1_09.jpg (66858 bytes)            cv_t4_09.jpg (55262 bytes)            cv_t2_09.jpg (67946 bytes)            cv_930_09.JPG (73505 bytes)
Type 1 = 24mm       Type 4 = 28mm        Type 2 = 28mm          930 = 28mm

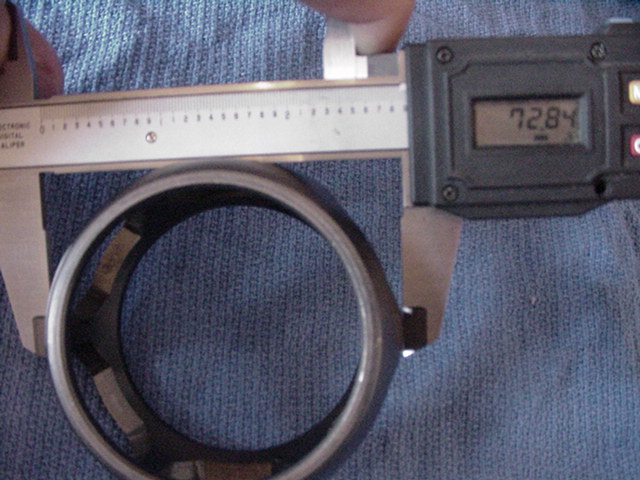

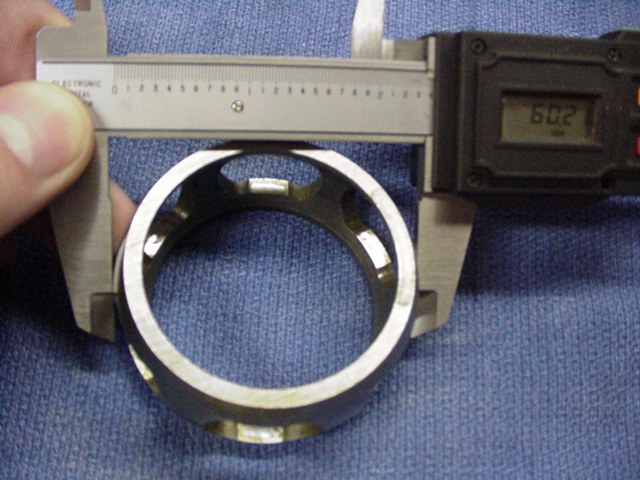

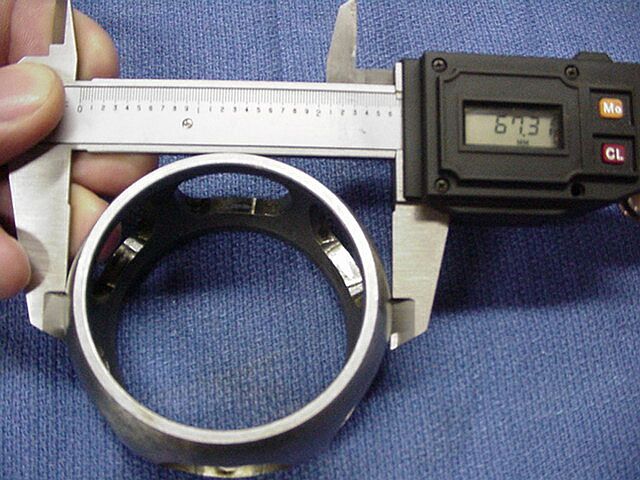

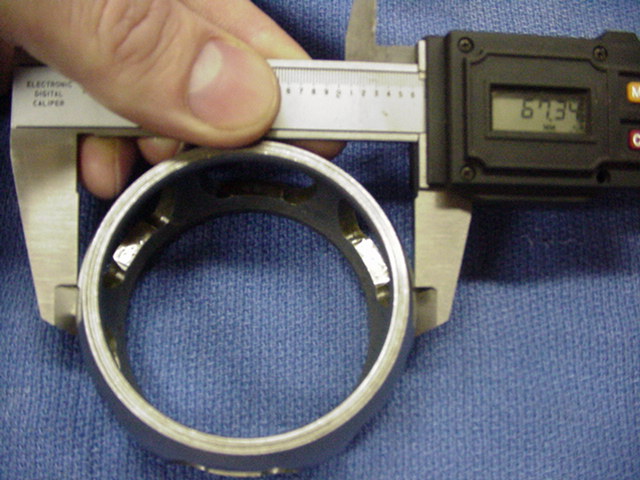

cv_t1_02.jpg (81906 bytes)            cv_t4_02.jpg (82264 bytes)            cv_t2_02.jpg (71521 bytes)            cv_930_02.JPG (85439 bytes)
Type 1 = 60.21mm   Type 4 = 67.34mm     Type 2 = 67.31mm   930 = 72.84mm

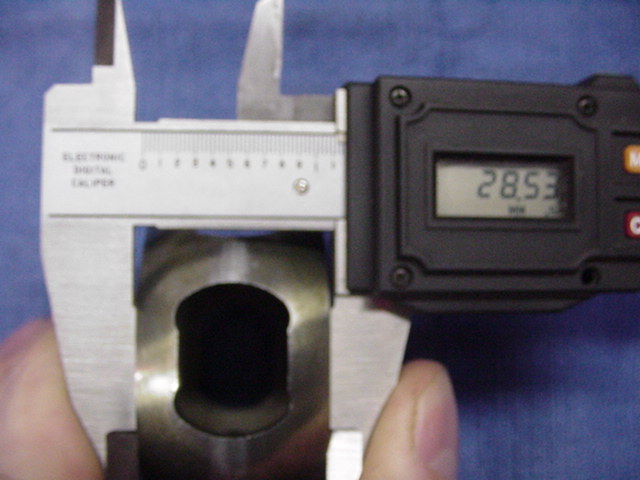

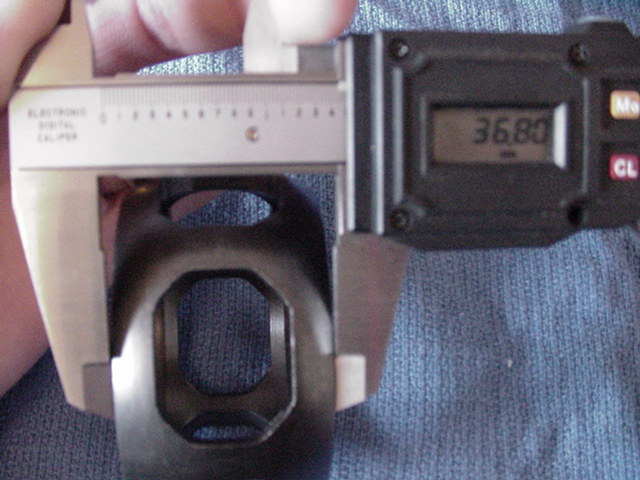

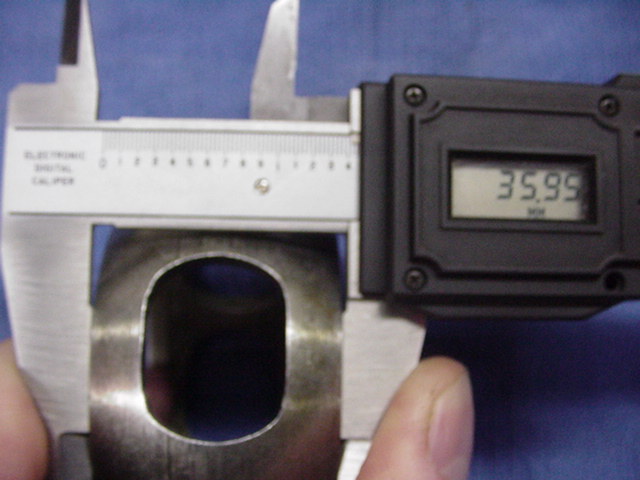

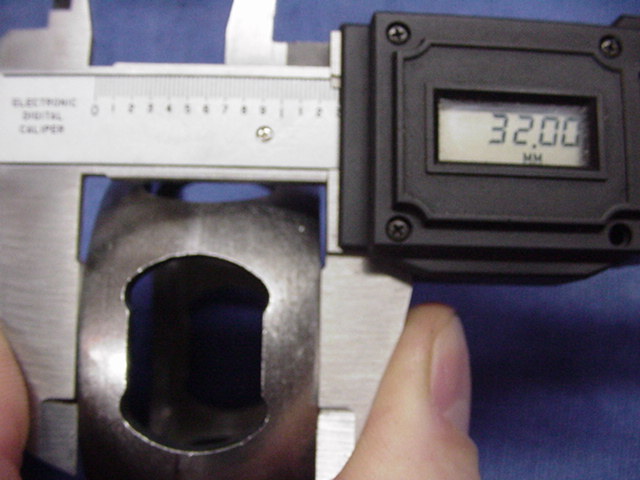

cv_t1_08.jpg (54433 bytes)            cv_t4_08.jpg (57009 bytes)            cv_t2_08.jpg (54915 bytes)            cv_930_08.JPG (76437 bytes)
Type 1 = 28.53mm   Type 4 = 32mm        Type 2 = 35.95mm    930 = 36.80mm

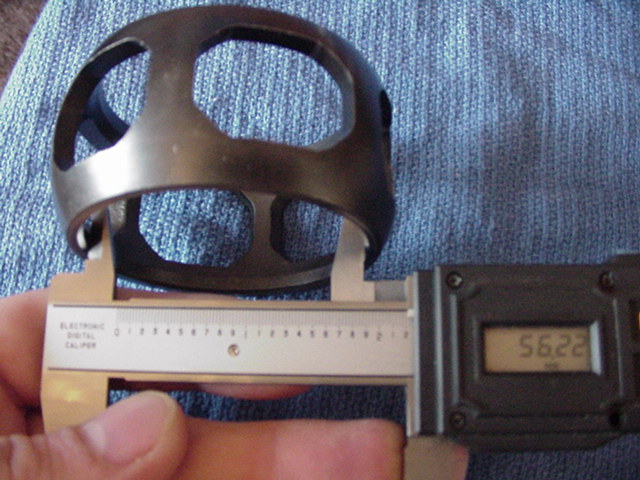

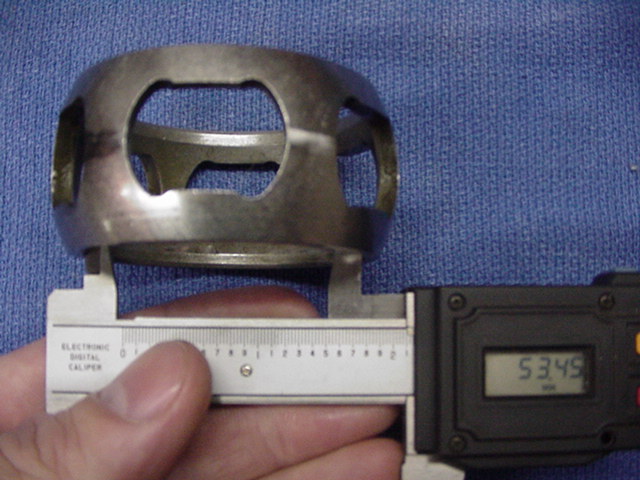

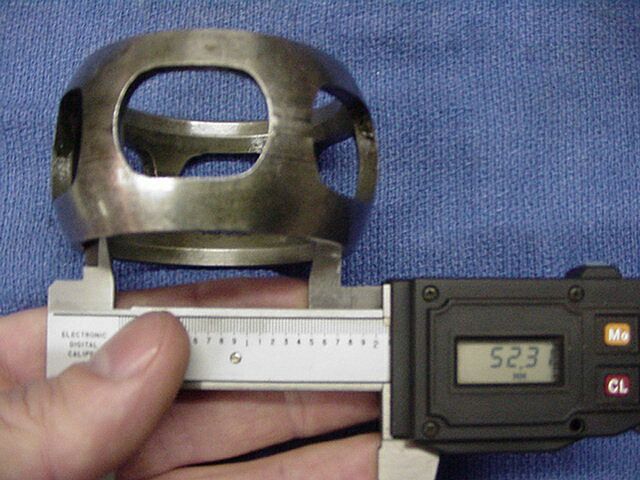

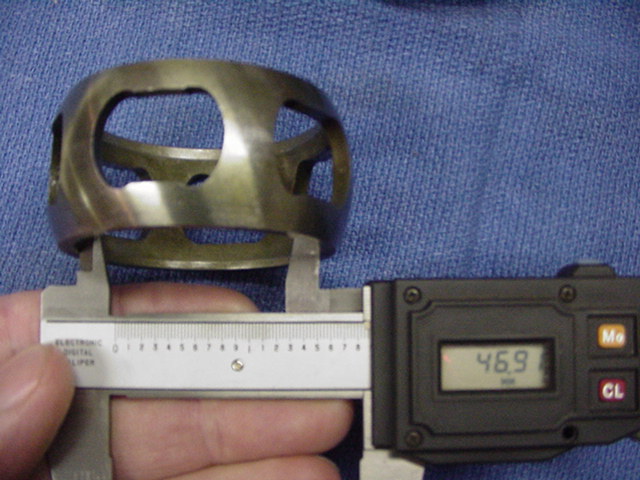

cv_t1_03.jpg (79353 bytes)            cv_t4_03.jpg (78578 bytes)            cv_t2_03.jpg (61350 bytes)            cv_930_03.JPG (90641 bytes)
Type 1 =  46.91mm  Type 4 =  53.45mm   Type 2 = 52.31mm    930 = 56.22mm

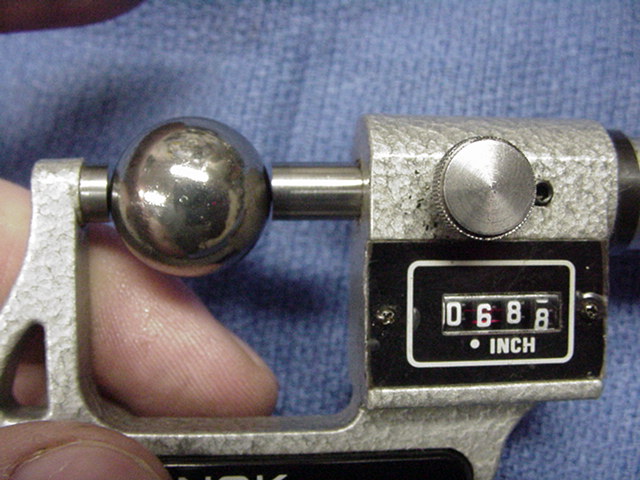

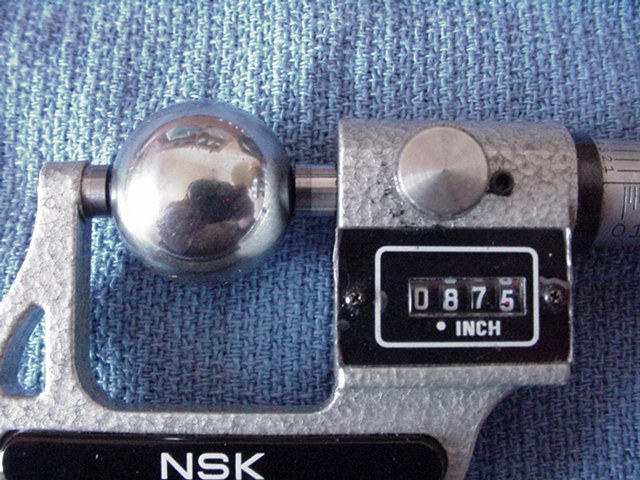

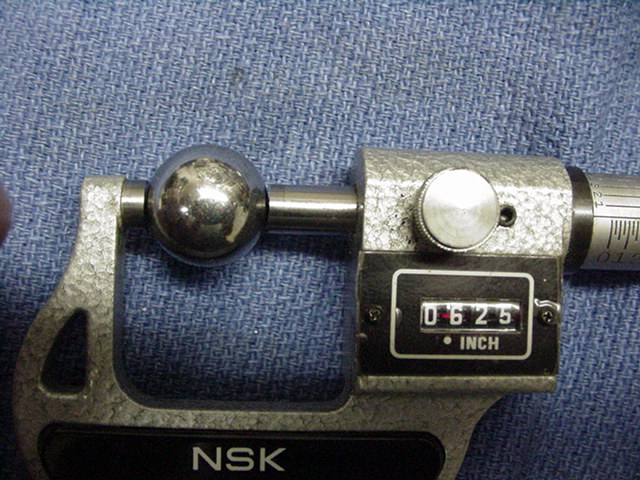

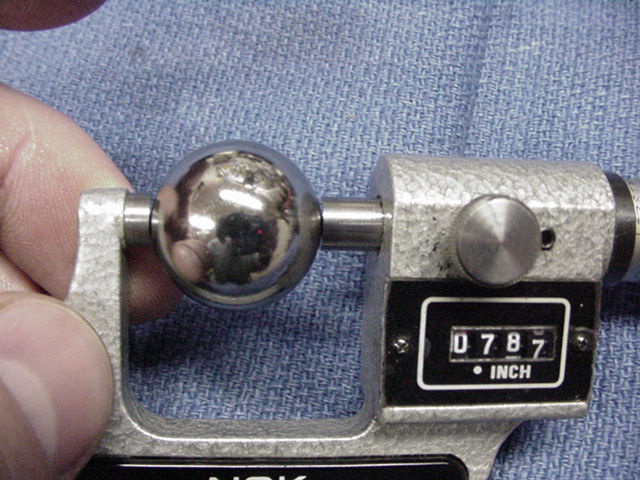

cv_t1_07.jpg (110511 bytes)            cv_t4_07.jpg (82111 bytes)            cv_t2_07.jpg (98481 bytes)            cv_930_07.JPG (109199 bytes)
 (15.90mm)                (17.5mm)                (20mm)                    (22.22mm)
Type 1 = .625"       Type 4 = .688"        Type 2 = .787"         930 = .875"
