We have 2x3, 4x5, and 5x5 trailing arms in either tubular or boxed style that can be made fairly quickly. Odd sizes take longer as we have to build a jig to fit them. Aftermarket arms will fit the following axles
Custom Size Tubular Trailing Arms $495 for a pair of Chromoly $395 for a pair of Steel

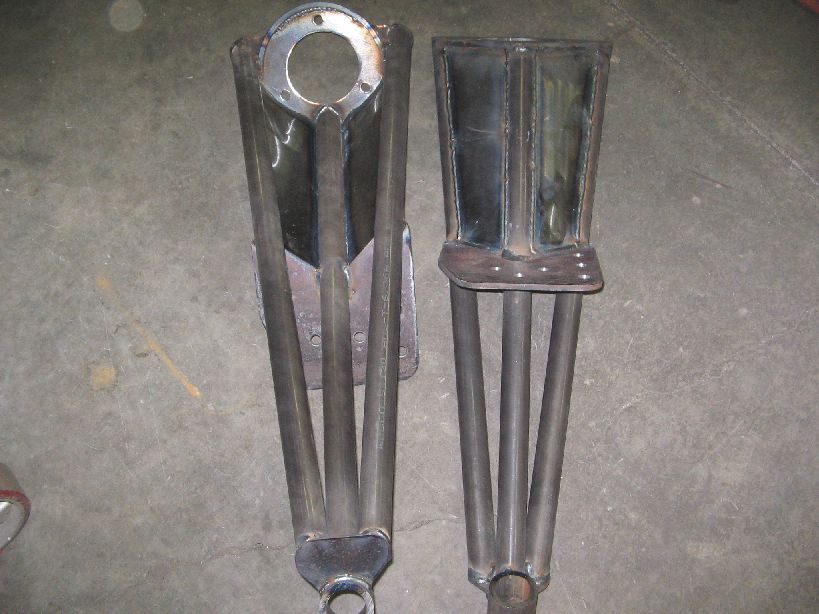

Above is the jig and a tubular trailing arm example. The first three pictures are stock length and 1.5 inches narrower for a speedster replica and weigh eight pounds less than stock arms. The last two are four inches wider and five inches longer for 20" of wheel travel. Arms available in mild steel with new chromoly bearing carriers or full chromoly. All arms are made to order and are typically shipped within ten days of order.
Steel Custom Length Tubular Arms with new Bearing Carriers The mild steel arms are made of 1.25" diameter .125 wall tubing with 5/16" steel bearing support plates and springplate mounts. Longer than stock arms are gusseted with 14ga steel plate as needed for extra rigidity. All come with new chromoly bearing carriers but only longer arms come with shock mounts. The shorter than stock arms are difficult to set shock position and must be done to match the car. Shock parts are supplied to approximate stock shock placement but only tacked in place. Narrowed Boxed Trailing Arms are available from Aircooled.net. For faster delivery contact them, they have them in stock.
Full Chromoly Custom Length Trailing Arms with new Bearing Carriers The full chromoly arms are made of 1.25" diameter .095 wall 4130 tubing with 1/4" 4130 bearing support plates and springplate mounts. Longer than stock arms are gusseted with 16ga 4130 plate as needed for extra rigidity. All come with new chromoly bearing carriers but only longer arms come with shock mounts. The shorter than stock arms are difficult to set shock position and must be done to match the car. Shock parts are supplied to approximate stock shock placement but only tacked in place.
Contact for questions -------------------------------------------------------------------------
2x3 with Chromoly carrier - $395 plus shipping
4x5 Rear Trailing Arms Complete, brand new 4x5 rear trailing arms with new chromoly carrier bearings made from 11 gauge steel. These arms fit the 20.5" vanagon axles available in wrecking yards. 4x5 with Chromoly carrier - $395 plus shipping 5x5 Rear Trailing Arms Complete, brand new 5x5 rear trailing arms with new chromoly carrier bearings made from 11 gauge steel. These arms fit the 21.5" vanagon axles available in wrecking yards. 5x5 with Chromoly carrier - $395 plus shipping
Contact for questions ------------------------------------------------------------------------- Kits to build the 2x3 or 4x5 trailing arms
I have kits available to build 2x3 or 4x5 rear trailing arms. They include everything to make the trailing arms used on Blindchickenracing.com, except the bearing carrier. It comes complete with assembly instructions and a diagram on how to make a jig to assemble the pieces. There is a small amount of shaping required to make it all fit together, but assembly is easy and straightforward. The arms are made of 11ga steel and are pre-formed with 1/4" shock mounts and spring plate mount. This kit requires welding and some fabrication. Kits are now available for $200 plus shipping. Contact for questions. -------------------------------------------------------------------------
Lift spindles are available for balljoint front suspensions for Baja Bugs and Sandrails. Spindles are made to order and require stock spindles as a core. Balljoint backed spindles are available without core for an extra $40. Spindles are made from a modified balljoint spindle with a custom lift plate for three inches of lift. They can still use the stock speedometer cable and trailing arms. $225 plus $25 shipping Lift spindles with new kingpin or combo spindles are now available for $200 a set plus shipping with the exchange of a useable core.
Contact for questions. ------------------------------------------------------------------------- |
